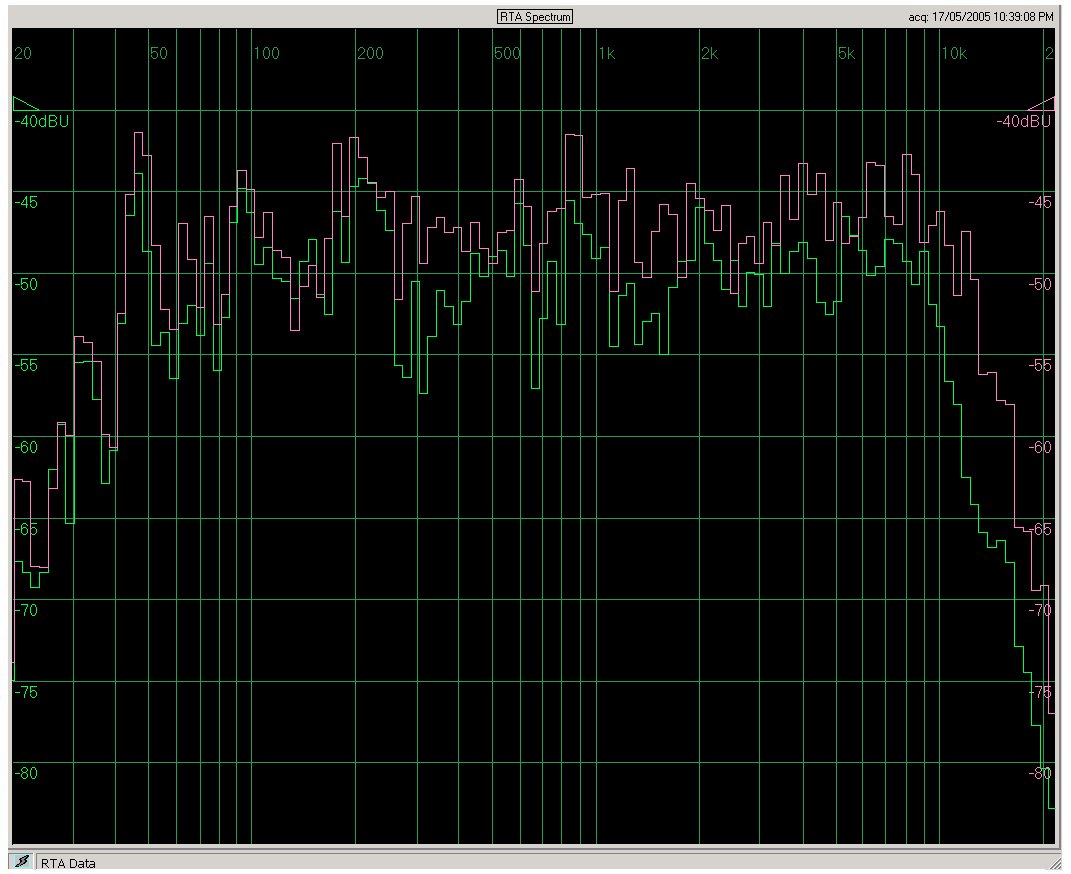

The JBL 4412 acoustic pink noise response
at the listening position on the speaker axis in our control room
at Greenledge Studios on May 17, 2005, after
JBL left speaker was refoamed,
HIGH=-1 MID=-4, with graphic equalization, measured
using PRAXIS @ 1/12 octave, 65536 points.
Data obtained using a calibrated Beyer MC740N Microphone
set to Omni mode (green trace), and an AKG C451 EB uni-directional
microphone (pink trace).
Both the green and pink traces are actual, measured responses of the speakers
in the room after equalization (using the different microphones described above).
|
